NinjaOne SCEP Configuration (Windows) / EAP-TLS

Prerequisites

Foxpass Console access (admin role-level)
NinjaOne admin access with rights to: Organization Custom Fields, Automation script import, and Agent Policies
- Target devices already enrolled into NinjaOne, specifically devices for testing initial deployment

Step 1: Configure SCEP

Create the SCEP endpoint in Foxpass

Open the Foxpass Console SCEP page.
Click Create SCEP endpoint.
Configure the endpoint:
- Name: Give the endpoint a descriptive name, for example NinjaOne SCEP.
- Verification type: None

  Verification type applicable to MDM enrollment.
- Authentication type: Challenge Password
- Client Certificate Authority: Use the CA created during the EAP-TLS Initial Setup.
Click Create.

Make sure to download your Client CA and Server CA before proceeding.

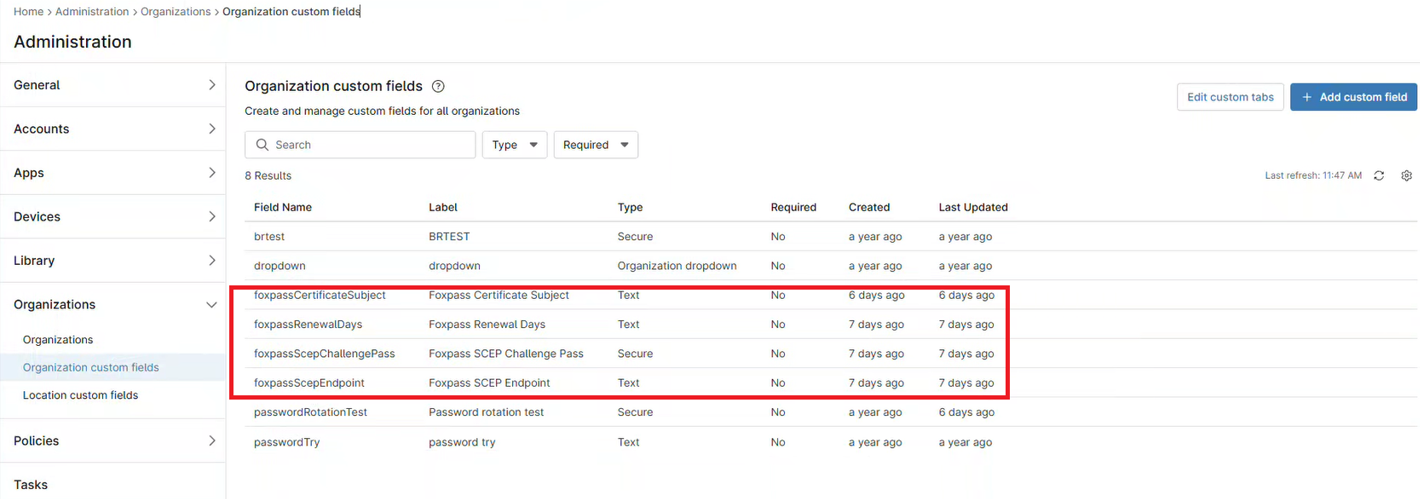

Create NinjaOne organization custom fields

In NinjaOne, go to:

Administration > Organizations > Organization Custom Fields

Add the following custom fields:

Type	Label	Permissions
Text	Foxpass Certificate Subject	Automations - Read only
Text	Foxpass Renewal Days	Automations - Read only
Text	Foxpass SCEP Endpoint	Automations - Read only
Secure	Foxpass SCEP Challenge Pass	Automations - Read only

Save each custom field after creating it.

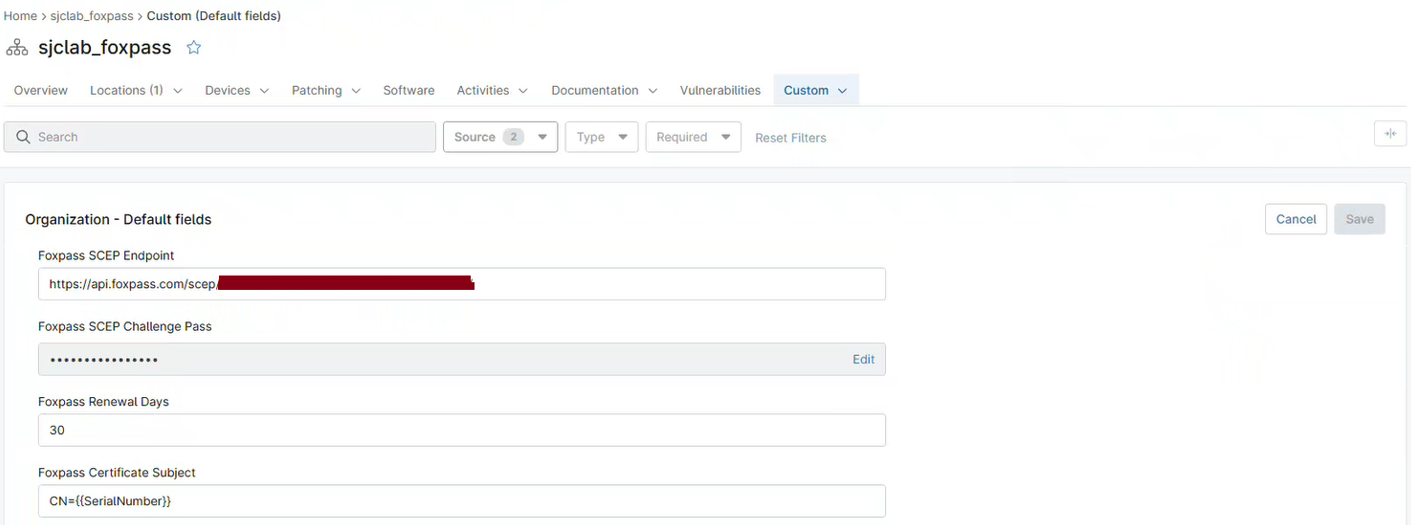

Configure default organization custom field values

Go to:

Dashboard > Select Organization > Custom > Default Fields

Set the following values:

Field	Value
Foxpass SCEP Endpoint	Insert the SCEP endpoint URL from Step 1
Foxpass SCEP Challenge Pass	Insert the challenge password from Step 1
Foxpass Renewal Days	`30`
Foxpass Certificate Subject - Device Certificate	`CN={{SerialNumber}}`

Click Save. This will be applicable to SCEP Enrollment in Step 2, Script 2.

Step 2: Import and Configure Scripts

In NinjaOne, go to:

Administration > Automation > Import from File

Copy and import the three PowerShell scripts described below.

Script 1: Trust CA PEM Certificate

Copy and configure the script as follows:

Setting	Value
Name	Foxpass - Trust CA PEM Certificate
Language	PowerShell
OS	Windows
Architecture	All
Run as	System

Within the script, replace two values with the appropriate CA certificate PEM content.

To retrieve each certificate PEM:

Locate the Client CA and Server CA certificate files.
Right-click each certificate.
Open the certificate with Notepad.
Copy the PEM certificate content.
Insert the corresponding PEM content into the script.

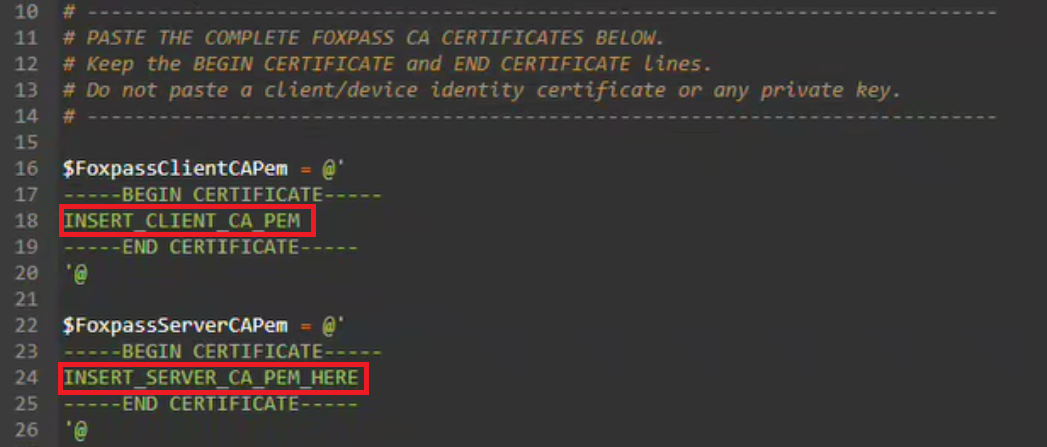

Replace:

INSERT_CLIENT_CA_PEM
INSERT_SERVER_CA_PEM

[CmdletBinding()]
param(
    [Parameter(Mandatory = $false)]
    [string]$LogPath = 'C:\ProgramData\NinjaRMMAgent\logs\foxpass-ca-deployment.log'
)

Set-StrictMode -Version 2.0
$ErrorActionPreference = 'Stop'

# -----------------------------------------------------------------------------
# PASTE THE COMPLETE FOXPASS CA CERTIFICATES BELOW.
# Keep the BEGIN CERTIFICATE and END CERTIFICATE lines.
# Do not paste a client/device identity certificate or any private key.
# -----------------------------------------------------------------------------

$FoxpassClientCAPem = @'
-----BEGIN CERTIFICATE-----
INSERT_CLIENT_CA_PEM_HERE
-----END CERTIFICATE-----
'@

$FoxpassServerCAPem = @'
-----BEGIN CERTIFICATE-----
INSERT_SERVER_CA_PEM_HERE
-----END CERTIFICATE-----
'@

# -----------------------------------------------------------------------------

function Initialize-Log {
    $directory = Split-Path -Parent $script:LogPath
    if ([string]::IsNullOrWhiteSpace($directory)) {
        throw "The log path '$script:LogPath' does not include a valid parent directory."
    }

    if (-not (Test-Path -LiteralPath $directory)) {
        New-Item -Path $directory -ItemType Directory -Force | Out-Null
    }
}

function Write-Log {
    param(
        [Parameter(Mandatory = $true)]
        [string]$Message,

        [Parameter(Mandatory = $false)]
        [ValidateSet('INFO', 'WARN', 'ERROR')]
        [string]$Level = 'INFO'
    )

    $entry = '{0} [{1}] {2}' -f (Get-Date -Format 'yyyy-MM-dd HH:mm:ss'), $Level, $Message
    Write-Host $entry

    try {
        Add-Content -LiteralPath $script:LogPath -Value $entry -Encoding UTF8
    }
    catch {
        Write-Host "Unable to write to log file '$script:LogPath': $($_.Exception.Message)"
    }
}

function Test-IsElevated {
    $identity = [Security.Principal.WindowsIdentity]::GetCurrent()
    $principal = New-Object Security.Principal.WindowsPrincipal($identity)
    return $principal.IsInRole([Security.Principal.WindowsBuiltInRole]::Administrator)
}

function Test-PlaceholderPem {
    param(
        [Parameter(Mandatory = $true)]
        [string]$PemText,

        [Parameter(Mandatory = $true)]
        [string]$FriendlyName
    )

    if ([string]::IsNullOrWhiteSpace($PemText) -or
        $PemText -match 'PASTE_COMPLETE_' -or
        $PemText -notmatch '-----BEGIN CERTIFICATE-----' -or
        $PemText -notmatch '-----END CERTIFICATE-----') {
        throw "$FriendlyName has not been populated. Paste the complete PEM certificate into the matching block near the top of the script."
    }
}

function Get-CertificatesFromPem {
    param(
        [Parameter(Mandatory = $true)]
        [string]$PemText,

        [Parameter(Mandatory = $true)]
        [string]$SourceName
    )

    $matches = [regex]::Matches(
        $PemText,
        '-----BEGIN CERTIFICATE-----\s*(?<Data>[A-Za-z0-9+/=\r\n\t ]+?)\s*-----END CERTIFICATE-----',
        [System.Text.RegularExpressions.RegexOptions]::IgnoreCase
    )

    if ($matches.Count -eq 0) {
        throw "No valid PEM certificate blocks were found in $SourceName."
    }

    $certificates = New-Object System.Collections.Generic.List[System.Security.Cryptography.X509Certificates.X509Certificate2]

    foreach ($match in $matches) {
        try {
            $base64 = $match.Groups['Data'].Value -replace '\s', ''
            $rawData = [Convert]::FromBase64String($base64)
            $certificate = New-Object System.Security.Cryptography.X509Certificates.X509Certificate2 -ArgumentList @(,$rawData)
            $certificates.Add($certificate)
        }
        catch {
            throw "A certificate in $SourceName could not be parsed. $($_.Exception.Message)"
        }
    }

    return $certificates
}

function Test-IsCertificateAuthority {
    param(
        [Parameter(Mandatory = $true)]
        [System.Security.Cryptography.X509Certificates.X509Certificate2]$Certificate
    )

    foreach ($extension in $Certificate.Extensions) {
        if ($extension.Oid.Value -eq '2.5.29.19') {
            $basicConstraints = New-Object System.Security.Cryptography.X509Certificates.X509BasicConstraintsExtension
            $basicConstraints.CopyFrom($extension)
            return $basicConstraints.CertificateAuthority
        }
    }

    return $false
}

function Install-CACertificate {
    param(
        [Parameter(Mandatory = $true)]
        [System.Security.Cryptography.X509Certificates.X509Certificate2]$Certificate,

        [Parameter(Mandatory = $true)]
        [string]$SourceName
    )

    if (-not (Test-IsCertificateAuthority -Certificate $Certificate)) {
        throw "Certificate '$($Certificate.Subject)' from $SourceName is not marked as a CA certificate. It was not installed."
    }

    $isSelfSigned = ($Certificate.Subject -eq $Certificate.Issuer)
    $storeName = if ($isSelfSigned) {
        [System.Security.Cryptography.X509Certificates.StoreName]::Root
    }
    else {
        [System.Security.Cryptography.X509Certificates.StoreName]::CertificateAuthority
    }
    $storeDisplay = if ($isSelfSigned) { 'Cert:\LocalMachine\Root' } else { 'Cert:\LocalMachine\CA' }

    $store = New-Object System.Security.Cryptography.X509Certificates.X509Store(
        $storeName,
        [System.Security.Cryptography.X509Certificates.StoreLocation]::LocalMachine
    )

    try {
        $store.Open([System.Security.Cryptography.X509Certificates.OpenFlags]::ReadWrite)
        $existing = $store.Certificates.Find(
            [System.Security.Cryptography.X509Certificates.X509FindType]::FindByThumbprint,
            $Certificate.Thumbprint,
            $false
        )

        if ($existing.Count -gt 0) {
            Write-Log "Already installed: '$($Certificate.Subject)' [$($Certificate.Thumbprint)] in $storeDisplay."
            return 'Existing'
        }

        $store.Add($Certificate)
        Write-Log "Installed: '$($Certificate.Subject)' [$($Certificate.Thumbprint)] from $SourceName into $storeDisplay."
        return 'Installed'
    }
    finally {
        $store.Close()
    }
}

try {
    $script:LogPath = $LogPath
    Initialize-Log
    Write-Log 'Starting Foxpass CA certificate deployment.'

    if (-not (Test-IsElevated)) {
        throw 'This script must run as SYSTEM or from an elevated PowerShell session.'
    }

    Test-PlaceholderPem -PemText $FoxpassClientCAPem -FriendlyName 'Foxpass Client CA'
    Test-PlaceholderPem -PemText $FoxpassServerCAPem -FriendlyName 'Foxpass Server CA'

    $inputSets = @(
        [pscustomobject]@{ Name = 'Foxpass Client CA'; Pem = $FoxpassClientCAPem },
        [pscustomobject]@{ Name = 'Foxpass Server CA'; Pem = $FoxpassServerCAPem }
    )

    $seenThumbprints = @{}
    $installedCount = 0
    $existingCount = 0

    foreach ($inputSet in $inputSets) {
        $certificates = @(Get-CertificatesFromPem -PemText $inputSet.Pem -SourceName $inputSet.Name)
        Write-Log "Found $(@($certificates).Count) certificate(s) in $($inputSet.Name)."

        foreach ($certificate in @($certificates)) {
            try {
                if ($seenThumbprints.ContainsKey($certificate.Thumbprint)) {
                    Write-Log "Duplicate PEM input skipped: '$($certificate.Subject)' [$($certificate.Thumbprint)]." -Level 'WARN'
                    continue
                }

                $seenThumbprints[$certificate.Thumbprint] = $true
                $result = Install-CACertificate -Certificate $certificate -SourceName $inputSet.Name

                if ($result -eq 'Installed') { $installedCount++ }
                if ($result -eq 'Existing') { $existingCount++ }
            }
            finally {
                $certificate.Dispose()
            }
        }
    }

    Write-Log "Foxpass CA deployment completed successfully. Installed: $installedCount; already present: $existingCount."
    exit 0
}
catch {
    try {
        Write-Log $_.Exception.Message -Level 'ERROR'
        Write-Log 'Foxpass CA deployment failed.' -Level 'ERROR'
    }
    catch {
        Write-Host "Foxpass CA deployment failed: $($_.Exception.Message)"
    }
    exit 1
}

Then click Save.

Script 2: SCEP Certificate Enrollment

Device/Machine Certificate

SCEP values were configured in Step 1.

Setting	Value
Name	Foxpass - SCEP Device Certificate Enrollment
Language	PowerShell
OS	Windows
Architecture	All
Run as	System

Copy and paste. No changes.

[CmdletBinding()]
param(
    [string]$FoxpassScepEndpoint,
    [string]$FoxpassScepChallengePass,
    [string]$CertificateSubject,
    [ValidateRange(1,3650)][int]$RenewalDays = 30,
    [ValidateSet(2048,4096)][int]$KeyLength = 4096,
    [bool]$CleanupSupersededCertificates = $true,
    [string]$FriendlyName = 'Foxpass EAP-TLS Device Certificate',
    [string]$LogPath = 'C:\ProgramData\Foxpass\Logs\Enroll-FoxpassSCEP.log'
)
Set-StrictMode -Version 2.0
$ErrorActionPreference = 'Stop'
$ProgressPreference = 'SilentlyContinue'
$ClientAuthOid = '1.3.6.1.5.5.7.3.2'
$Sha256Oid = '2.16.840.1.101.3.4.2.1'
$StorePath = 'Cert:\LocalMachine\My'

function Write-Log {
    param([string]$Message,[ValidateSet('INFO','WARN','ERROR')][string]$Level='INFO')
    $dir = Split-Path -Parent $LogPath
    if (-not (Test-Path $dir)) { New-Item $dir -ItemType Directory -Force | Out-Null }
    $line = '{0} [{1}] {2}' -f (Get-Date -Format 'yyyy-MM-dd HH:mm:ss'),$Level,$Message
    Write-Host $line
    Add-Content $LogPath $line -Encoding UTF8
}

function ConvertTo-Text {
    param([AllowNull()][object]$Value)
    if ($null -eq $Value) { return $null }
    if ($Value -is [Security.SecureString]) {
        $ptr = [Runtime.InteropServices.Marshal]::SecureStringToBSTR($Value)
        try { $Value = [Runtime.InteropServices.Marshal]::PtrToStringBSTR($ptr) }
        finally { if ($ptr -ne [IntPtr]::Zero) { [Runtime.InteropServices.Marshal]::ZeroFreeBSTR($ptr) } }
    }
    if ($Value -is [Array]) {
        $Value = @($Value | ForEach-Object { ConvertTo-Text $_ } | Where-Object { $_ }) -join [Environment]::NewLine
    }
    $text = [Convert]::ToString($Value,[Globalization.CultureInfo]::InvariantCulture).Trim()
    if (-not $text) { return $null }
    if ($text.StartsWith('{') -and $text.EndsWith('}')) {
        try {
            $json = $text | ConvertFrom-Json -ErrorAction Stop
            foreach ($name in 'value','Value','text','Text','url','Url','href','Href') {
                $property = $json.PSObject.Properties[$name]
                if ($property -and ($candidate = ConvertTo-Text $property.Value)) { return $candidate }
            }
        } catch {}
    }
    return $text
}

function Get-NinjaValue {
    param([string]$Name)
    foreach ($cmd in 'Ninja-Property-Get','Get-NinjaProperty') {
        if (-not (Get-Command $cmd -ErrorAction SilentlyContinue)) { continue }
        try {
            $value = if ($cmd -eq 'Get-NinjaProperty') { Get-NinjaProperty -Name $Name } else { Ninja-Property-Get $Name }
            if ($value = ConvertTo-Text $value) { return $value }
        } catch {}
    }
}

function Resolve-Value {
    param([AllowNull()][object]$Explicit,[string]$EnvironmentName,[string]$NinjaField,[switch]$Required)
    $value = ConvertTo-Text $Explicit
    if (-not $value) { $value = ConvertTo-Text ([Environment]::GetEnvironmentVariable($EnvironmentName,'Process')) }
    if (-not $value) { $value = Get-NinjaValue $NinjaField }
    if ($Required -and -not $value) { throw "Missing '$NinjaField'. Supply it as a parameter, script variable, or NinjaOne custom field." }
    return $value
}

function Get-ClientAuthOids {
    param([Security.Cryptography.X509Certificates.X509Certificate2]$Certificate)
    $ext = $Certificate.Extensions | Where-Object { $_.Oid.Value -eq '2.5.29.37' } | Select-Object -First 1
    if (-not $ext) { return @() }
    try {
        $eku = New-Object Security.Cryptography.X509Certificates.X509EnhancedKeyUsageExtension
        $eku.CopyFrom($ext)
        return @($eku.EnhancedKeyUsages | ForEach-Object Value)
    } catch {
        return @($Certificate.EnhancedKeyUsageList | ForEach-Object {
            if ($_.ObjectId -is [string]) { $_.ObjectId } elseif ($_.ObjectId) { $_.ObjectId.Value }
        })
    }
}

function Get-MatchingCertificates {
    param([string]$Subject)
    @(Get-ChildItem $StorePath | Where-Object {
        $_.Subject -ieq $Subject -and $_.HasPrivateKey -and ((Get-ClientAuthOids $_) -contains $ClientAuthOid)
    })
}

function New-ScepRequest {
    param([string]$Subject,[string]$Challenge,[int]$Length)
    $request = New-Object -ComObject X509Enrollment.CX509CertificateRequestPkcs10
    $request.Initialize(2)
    $dn = New-Object -ComObject X509Enrollment.CX500DistinguishedName
    $dn.Encode($Subject)
    $request.Subject = $dn
    $request.PrivateKey.Length = $Length
    $request.PrivateKey.ExportPolicy = 0
    $request.PrivateKey.ProviderName = 'Microsoft Software Key Storage Provider'
    $request.KeyContainerNamePrefix = "FoxpassSCEP-$($env:COMPUTERNAME)-"
    $request.ChallengePassword = $Challenge
    $hash = New-Object -ComObject X509Enrollment.CObjectId
    $hash.InitializeFromValue($Sha256Oid)
    $request.HashAlgorithm = $hash
    $keyUsage = New-Object -ComObject X509Enrollment.CX509ExtensionKeyUsage
    $keyUsage.InitializeEncode(0xA0)
    $request.X509Extensions.Add($keyUsage)
    $oids = New-Object -ComObject X509Enrollment.CObjectIds
    $oid = New-Object -ComObject X509Enrollment.CObjectId
    $oid.InitializeFromValue($ClientAuthOid)
    $oids.Add($oid)
    $eku = New-Object -ComObject X509Enrollment.CX509ExtensionEnhancedKeyUsage
    $eku.InitializeEncode($oids)
    $request.X509Extensions.Add($eku)
    return $request
}

function Invoke-ScepEnrollment {
    param([string]$Endpoint,[__ComObject]$Request)
    $helper = New-Object -ComObject X509Enrollment.CX509SCEPEnrollmentHelper
    $helper.Initialize($Endpoint,[string]::Empty,$Request,[string]::Empty)
    $result = [int]$helper.Enroll(0)
    if ($result -eq 0) { return }
    $message = [string]$helper.ResultMessageText
    switch ($result) {
        2 { throw "Foxpass rejected the request. $message" }
        3 { throw "Foxpass returned a pending response. $message" }
        11 { throw "Foxpass requested another challenge. $message" }
        default { throw "Unexpected SCEP disposition '$result'. $message" }
    }
}

try {
    $identity = [Security.Principal.WindowsIdentity]::GetCurrent()
    if (-not (($identity.User -and $identity.User.Value -eq 'S-1-5-18') -or $identity.Name -eq 'NT AUTHORITY\SYSTEM')) {
        throw 'Run this NinjaOne automation as NT AUTHORITY\SYSTEM.'
    }

    $FoxpassScepEndpoint = Resolve-Value $FoxpassScepEndpoint 'FoxpassScepEndpoint' 'foxpassScepEndpoint' -Required
    $endpointMatch = [regex]::Match([Net.WebUtility]::HtmlDecode($FoxpassScepEndpoint),'https://api\.foxpass\.com/scep/[A-Za-z0-9-]+/?','IgnoreCase')
    if ($endpointMatch.Success) { $FoxpassScepEndpoint = $endpointMatch.Value }
    $uri = $null
    if (-not [Uri]::TryCreate($FoxpassScepEndpoint,[UriKind]::Absolute,[ref]$uri) -or $uri.Scheme -ne 'https') { throw 'Invalid Foxpass SCEP HTTPS endpoint.' }
    $FoxpassScepEndpoint = $uri.AbsoluteUri

    $FoxpassScepChallengePass = [Net.WebUtility]::HtmlDecode((Resolve-Value $FoxpassScepChallengePass 'FoxpassScepChallengePass' 'foxpassScepChallengePass' -Required))
    $FoxpassScepChallengePass = ($FoxpassScepChallengePass -replace '[\uFEFF\u200B-\u200D\u2060\x00-\x1F\x7F]','').Trim().Trim([char[]]@([char]34,[char]39))
    if (-not $FoxpassScepChallengePass -or $FoxpassScepChallengePass -match '[^\x20-\x7E]') { throw 'Invalid Foxpass SCEP challenge.' }

    $serial = ConvertTo-Text (Get-CimInstance Win32_BIOS -ErrorAction Stop).SerialNumber
    if (-not $serial -or $serial -in @('Default String','System Serial Number','To Be Filled By O.E.M.','To Be Filled By OEM','Unknown','None','Not Specified','Not Applicable')) { throw "Invalid BIOS serial number: '$serial'." }
    $serial = ($serial -replace '[\uFEFF\u200B-\u200D\u2060\x00-\x1F\x7F]','' -replace '\\','\\' -replace '([,+"<>;=])','\$1').Trim()

    if (-not $CertificateSubject) { $CertificateSubject = Resolve-Value $null 'FoxpassCertificateSubject' 'foxpassCertificateSubject' }
    if (-not $CertificateSubject) { $CertificateSubject = "CN=$serial" }
    else {
        foreach ($token in '{{SerialNumber}}','{{SERIALNUMBER}}','%SERIALNUMBER%','$serialNumber') { $CertificateSubject = $CertificateSubject.Replace($token,$serial) }
        if ($CertificateSubject -notmatch '^\s*[A-Za-z][A-Za-z0-9.]*\s*=') { $CertificateSubject = "CN=$CertificateSubject" }
    }

    if ($raw = Resolve-Value $null 'FoxpassRenewalDays' 'foxpassRenewalDays') {
        $parsed = 0
        if (-not [int]::TryParse($raw,[ref]$parsed) -or $parsed -lt 1 -or $parsed -gt 3650) { throw 'foxpassRenewalDays must be 1-3650.' }
        $RenewalDays = $parsed
    }

    $existing = Get-MatchingCertificates $CertificateSubject | Where-Object { $_.NotBefore -le (Get-Date) -and $_.NotAfter -gt (Get-Date) } | Sort-Object NotAfter -Descending | Select-Object -First 1
    if ($existing -and $existing.NotAfter -gt (Get-Date).AddDays($RenewalDays)) {
        Write-Log "Certificate valid until $($existing.NotAfter.ToString('u')); no renewal needed."
        exit 0
    }

    Write-Log "Enrolling $CertificateSubject."
    $before = @(Get-ChildItem $StorePath | ForEach-Object Thumbprint)
    $request = New-ScepRequest $CertificateSubject $FoxpassScepChallengePass $KeyLength
    Invoke-ScepEnrollment $FoxpassScepEndpoint $request
    $FoxpassScepChallengePass = $null

    $newCertificate = $null
    for ($i=0; $i -lt 5 -and -not $newCertificate; $i++) {
        Start-Sleep 2
        $newCertificate = Get-MatchingCertificates $CertificateSubject | Where-Object { $before -notcontains $_.Thumbprint } | Sort-Object NotAfter -Descending | Select-Object -First 1
    }
    if (-not $newCertificate) { throw 'SCEP completed, but no usable new client-authentication certificate was found.' }

    try { $newCertificate.FriendlyName = $FriendlyName } catch { Write-Log 'Certificate installed; friendly name could not be set.' 'WARN' }
    if ($CleanupSupersededCertificates) {
        Get-MatchingCertificates $CertificateSubject | Where-Object {
            $_.Thumbprint -ne $newCertificate.Thumbprint -and $_.NotAfter -le $newCertificate.NotAfter
        } | ForEach-Object {
            try { Remove-Item (Join-Path $StorePath $_.Thumbprint) -Force } catch { Write-Log "Could not remove old certificate $($_.Thumbprint)." 'WARN' }
        }
    }

    Write-Log "Enrollment complete: $($newCertificate.Thumbprint), expires $($newCertificate.NotAfter.ToString('u'))."
    exit 0
}
catch {
    Write-Log $_.Exception.Message 'ERROR'
    exit 1
}
finally {
    $FoxpassScepChallengePass = $null
    $request = $null
}

Click Save.

Script 3: Wi-Fi Profile Configuration

Copy and configure the script as follows:

Setting	Value
Name	Foxpass - Wi-Fi Profile Configuration - SSID
Language	PowerShell
OS	Windows
Architecture	All
Run as	System

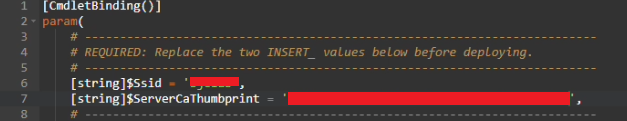

Within the script, replace two values.

1. SSID

Replace:

$Ssid = 'INSERT_SSID_HERE'

Note: The SSID value is case-sensitive.

2. Server CA thumbprint

Replace:

[string]$ServerCaThumbprint = 'INSERT_SERVER_CA_THUMBPRINT_HERE'

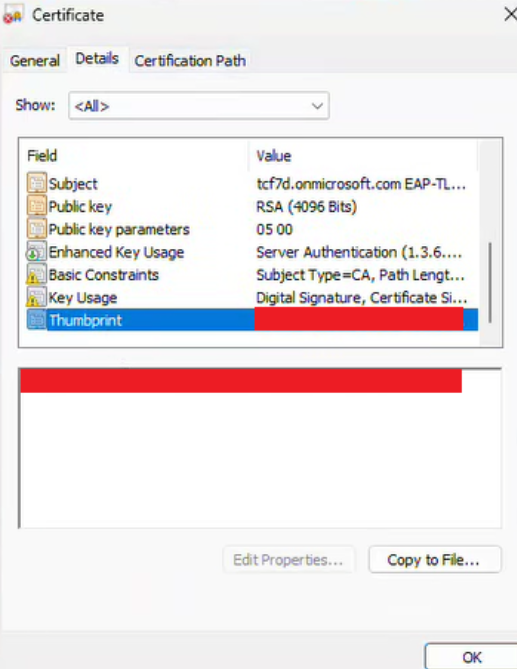

To retrieve the thumbprint, open the Server CA Certificate, go to Details, and copy the Thumbprint value.

[CmdletBinding()]
param(
    # -------------------------------------------------------------------------
    # REQUIRED: Replace the two INSERT values below before deploying.
    # -------------------------------------------------------------------------
    [string]$Ssid = 'INSERT_SSID_HERE',
    [string]$ServerCaThumbprint = 'INSERT_SERVER_CA_THUMBPRINT_HERE',
    # -------------------------------------------------------------------------

    [AllowEmptyString()]
    [string]$RadiusServerNames = '',
    [ValidateRange(10,300)]
    [int]$ConnectionWaitSeconds = 60,
    [switch]$RequireImmediateConnection,
    [string]$LogPath = "C:\ProgramData\Foxpass\Logs\Configure-$Ssid-EAPTLS.log"
)

Set-StrictMode -Version 2.0
$ErrorActionPreference = 'Stop'
$ProgressPreference = 'SilentlyContinue'

$ClientAuthenticationOid = '1.3.6.1.5.5.7.3.2'

function Initialize-Log {
    $dir = Split-Path -Parent $LogPath
    if (-not (Test-Path -LiteralPath $dir)) {
        New-Item -Path $dir -ItemType Directory -Force | Out-Null
    }
}

function Write-Log {
    param(
        [Parameter(Mandatory)][string]$Message,
        [ValidateSet('INFO','WARN','ERROR')][string]$Level='INFO'
    )

    $entry = '{0} [{1}] {2}' -f (Get-Date -Format 'yyyy-MM-dd HH:mm:ss'), $Level, $Message
    Write-Host $entry
    Add-Content -LiteralPath $LogPath -Value $entry -Encoding UTF8
}

function ConvertTo-PlainString {
    param([AllowNull()][object]$Value)

    if ($null -eq $Value) { return $null }

    if ($Value -is [Security.SecureString]) {
        $bstr = [Runtime.InteropServices.Marshal]::SecureStringToBSTR($Value)
        try { $Value = [Runtime.InteropServices.Marshal]::PtrToStringBSTR($bstr) }
        finally {
            if ($bstr -ne [IntPtr]::Zero) {
                [Runtime.InteropServices.Marshal]::ZeroFreeBSTR($bstr)
            }
        }
    }

    if ($Value -is [System.Array]) {
        $parts = @(
            $Value |
                ForEach-Object { ConvertTo-PlainString -Value $_ } |
                Where-Object { -not [string]::IsNullOrWhiteSpace($_) }
        )
        if ($parts.Count -eq 0) { return $null }
        return ($parts -join ';').Trim()
    }

    $text = [string]$Value
    if ([string]::IsNullOrWhiteSpace($text)) { return $null }

    $text = $text.Trim()

    # NinjaOne URL/text fields can occasionally be returned as a JSON wrapper.
    if ($text.StartsWith('{') -and $text.EndsWith('}')) {
        try {
            $obj = $text | ConvertFrom-Json -ErrorAction Stop
            foreach ($propertyName in @('value','text','url','href')) {
                $property = $obj.PSObject.Properties[$propertyName]
                if ($null -ne $property) {
                    $candidate = ConvertTo-PlainString -Value $property.Value
                    if (-not [string]::IsNullOrWhiteSpace($candidate)) {
                        return $candidate
                    }
                }
            }
        }
        catch { }
    }

    return $text
}

function Get-NinjaFieldValue {
    param([Parameter(Mandatory)][string]$Name)

    # Prefer the command that is present in the NinjaOne agent scripting host.
    $legacyCommand = Get-Command -Name 'Ninja-Property-Get' -ErrorAction SilentlyContinue
    if ($legacyCommand) {
        try {
            $result = Ninja-Property-Get $Name
            $value = ConvertTo-PlainString -Value $result
            if (-not [string]::IsNullOrWhiteSpace($value)) { return $value }
        }
        catch {
            Write-Log "Ninja field '$Name' unavailable." 'WARN'
        }
    }

    $newCommand = Get-Command -Name 'Get-NinjaProperty' -ErrorAction SilentlyContinue
    if ($newCommand) {
        try {
            $result = Get-NinjaProperty -Name $Name
            $value = ConvertTo-PlainString -Value $result
            if (-not [string]::IsNullOrWhiteSpace($value)) { return $value }
        }
        catch {
            Write-Log "Ninja field '$Name' unavailable." 'WARN'
        }
    }

    return $null
}

function Resolve-Value {
    param(
        [string]$Explicit,
        [string]$EnvironmentVariable,
        [string]$FieldName,
        [string]$DisplayName
    )

    $explicitValue = ConvertTo-PlainString -Value $Explicit
    if (-not [string]::IsNullOrWhiteSpace($explicitValue)) {
        # Explicit parameter supplied; no additional log entry needed.
        return $explicitValue
    }

    # NinjaOne script variables are commonly exposed as process environment variables.
    $environmentValue = ConvertTo-PlainString -Value (
        [Environment]::GetEnvironmentVariable($EnvironmentVariable, 'Process')
    )
    if (-not [string]::IsNullOrWhiteSpace($environmentValue)) {
        Write-Log "Using Ninja variable '$EnvironmentVariable'."
        return $environmentValue
    }

    $fieldValue = Get-NinjaFieldValue -Name $FieldName
    if (-not [string]::IsNullOrWhiteSpace($fieldValue)) {
        Write-Log "Using Ninja field '$FieldName'."
        return $fieldValue
    }

    throw "$DisplayName is required. Supply parameter '-$EnvironmentVariable', map a NinjaOne script variable named '$EnvironmentVariable', or create an organization custom field with internal name '$FieldName' and grant Automation read access."
}

function Normalize-Thumbprint {
    param([Parameter(Mandatory)][string]$Thumbprint)
    $value = ($Thumbprint -replace '[^0-9A-Fa-f]','').ToUpperInvariant()
    if ($value.Length -ne 40) { throw 'Server CA thumbprint must be a 40-character SHA-1 certificate thumbprint.' }
    return $value
}

function Test-IsAdministrator {
    $identity = [Security.Principal.WindowsIdentity]::GetCurrent()
    $principal = New-Object Security.Principal.WindowsPrincipal($identity)
    return $principal.IsInRole([Security.Principal.WindowsBuiltInRole]::Administrator)
}

function Test-ClientAuthenticationEku {
    [CmdletBinding()]
    param(
        [Parameter(Mandatory)]
        [Security.Cryptography.X509Certificates.X509Certificate2]$Certificate
    )

    # PowerShell exposes EnhancedKeyUsageList differently across Windows and
    # .NET versions. In some environments ObjectId is already a string; in
    # others it is an Oid object. Parse both forms and then fall back to the
    # certificate's EKU extension directly.
    try {
        foreach ($usage in @($Certificate.EnhancedKeyUsageList)) {
            if ($null -eq $usage) { continue }

            $oid = $null

            if ($usage.PSObject.Properties.Name -contains 'ObjectId') {
                $objectId = $usage.ObjectId

                if ($objectId -is [string]) {
                    $oid = $objectId
                }
                elseif ($null -ne $objectId -and
                        $objectId.PSObject.Properties.Name -contains 'Value') {
                    $oid = [string]$objectId.Value
                }
            }

            if ([string]::IsNullOrWhiteSpace($oid) -and
                $usage -is [Security.Cryptography.Oid]) {
                $oid = [string]$usage.Value
            }

            if ($oid -eq $ClientAuthenticationOid) {
                return $true
            }
        }
    }
    catch {
        # Fall back to parsing the EKU extension.
    }

    try {
        $ekuExtension = $Certificate.Extensions |
            Where-Object { $_.Oid.Value -eq '2.5.29.37' } |
            Select-Object -First 1

        if ($null -eq $ekuExtension) {
            return $false
        }

        $typedEku = New-Object -TypeName Security.Cryptography.X509Certificates.X509EnhancedKeyUsageExtension -ArgumentList @($ekuExtension, $ekuExtension.Critical)

        foreach ($oid in @($typedEku.EnhancedKeyUsages)) {
            if ($null -ne $oid -and [string]$oid.Value -eq $ClientAuthenticationOid) {
                return $true
            }
        }
    }
    catch {
        # Treat an unreadable EKU extension as not matching.
    }

    return $false
}

function Escape-XmlText {
    param(
        [Parameter()]
        [AllowNull()]
        [AllowEmptyString()]
        [string]$Text
    )

    if ([string]::IsNullOrEmpty($Text)) {
        return ''
    }

    return [Security.SecurityElement]::Escape($Text)
}

Initialize-Log
Write-Log "Deploying EAP-TLS profile for '$Ssid'."

try {
    if (-not (Test-IsAdministrator)) { throw 'This script must run as Administrator or SYSTEM.' }

    # Server-name validation is intentionally optional. An empty value keeps
    # certificate-chain validation enabled while disabling DNS-name matching.
    $RadiusServerNames = ConvertTo-PlainString -Value $RadiusServerNames
    if ([string]::IsNullOrWhiteSpace($RadiusServerNames)) {
        $RadiusServerNames = ''
        Write-Log 'Server-name matching disabled; CA pinning remains enabled.' 'WARN'
    }
    else {
        # Server names supplied explicitly; no additional log entry needed.
    }

    $ServerCaThumbprint = Resolve-Value -Explicit $ServerCaThumbprint -EnvironmentVariable 'ServerCaThumbprint' -FieldName 'foxpassServerCaThumbprint' -DisplayName 'Foxpass Server CA thumbprint'
    $ServerCaThumbprint = Normalize-Thumbprint -Thumbprint $ServerCaThumbprint
    # Windows WLAN XML profiles require the CA thumbprint as space-separated byte pairs.
    $ServerCaThumbprintXml = ($ServerCaThumbprint -replace '(..)', '$1 ').Trim()

    $serverCa = Get-ChildItem Cert:\LocalMachine\Root,Cert:\LocalMachine\CA -ErrorAction SilentlyContinue |
        Where-Object { ($_.Thumbprint -replace '\s','').ToUpperInvariant() -eq $ServerCaThumbprint } |
        Select-Object -First 1
    if (-not $serverCa) { throw "The Foxpass Server CA certificate '$ServerCaThumbprint' is not installed in LocalMachine\Root or LocalMachine\CA." }

    $serial = [string](Get-CimInstance Win32_BIOS -ErrorAction Stop).SerialNumber
    $serial = $serial.Trim()
    $expectedSubject = "CN=$serial"

    $clientCert = Get-ChildItem Cert:\LocalMachine\My |
        Where-Object {
            $_.Subject -eq $expectedSubject -and $_.HasPrivateKey -and $_.NotAfter -gt (Get-Date) -and (Test-ClientAuthenticationEku $_)
        } |
        Sort-Object NotAfter -Descending |
        Select-Object -First 1
    if (-not $clientCert) { throw "No valid machine EAP-TLS certificate with subject '$expectedSubject', private key, and Client Authentication EKU was found." }
    Write-Log "Client certificate ready: $expectedSubject."

    $wlanService = Get-Service -Name WlanSvc -ErrorAction Stop
    if ($wlanService.Status -ne 'Running') {
        Start-Service -Name WlanSvc
        $wlanService.WaitForStatus('Running',[TimeSpan]::FromSeconds(15))
    }

    $interfacesText = (& netsh.exe wlan show interfaces 2>&1 | Out-String)
    if ($LASTEXITCODE -ne 0 -or $interfacesText -match 'There is no wireless interface') {
        throw 'No usable Windows wireless interface was detected.'
    }

    $escapedSsid = Escape-XmlText -Text $Ssid

    $normalizedServerNames = @(
        $RadiusServerNames -split '[,;\r\n]+' |
            ForEach-Object { $_.Trim() } |
            Where-Object { -not [string]::IsNullOrWhiteSpace($_) }
    ) -join ';'

    if ([string]::IsNullOrWhiteSpace($normalizedServerNames)) {
        $escapedServerNames = ''
    }
    else {
        $escapedServerNames = Escape-XmlText -Text $normalizedServerNames
    }

    $profileXml = @"
<?xml version="1.0" encoding="UTF-8"?>
<WLANProfile xmlns="http://www.microsoft.com/networking/WLAN/profile/v1">
  <name>$escapedSsid</name>
  <SSIDConfig><SSID><name>$escapedSsid</name></SSID><nonBroadcast>false</nonBroadcast></SSIDConfig>
  <connectionType>ESS</connectionType>
  <connectionMode>auto</connectionMode>
  <autoSwitch>false</autoSwitch>
  <MSM>
    <security>
      <authEncryption><authentication>WPA2</authentication><encryption>AES</encryption><useOneX>true</useOneX></authEncryption>
      <OneX xmlns="http://www.microsoft.com/networking/OneX/v1">
        <authMode>machine</authMode>
        <EAPConfig>
          <EapHostConfig xmlns="http://www.microsoft.com/provisioning/EapHostConfig" xmlns:eapCommon="http://www.microsoft.com/provisioning/EapCommon" xmlns:baseEap="http://www.microsoft.com/provisioning/BaseEapMethodConfig">
            <EapMethod><eapCommon:Type>13</eapCommon:Type><eapCommon:AuthorId>0</eapCommon:AuthorId></EapMethod>
            <Config xmlns:baseEap="http://www.microsoft.com/provisioning/BaseEapConnectionPropertiesV1" xmlns:eapTls="http://www.microsoft.com/provisioning/EapTlsConnectionPropertiesV1">
              <baseEap:Eap>
                <baseEap:Type>13</baseEap:Type>
                <eapTls:EapType>
                  <eapTls:CredentialsSource><eapTls:CertificateStore><eapTls:SimpleCertSelection>true</eapTls:SimpleCertSelection></eapTls:CertificateStore></eapTls:CredentialsSource>
                  <eapTls:ServerValidation>
                    <eapTls:DisableUserPromptForServerValidation>true</eapTls:DisableUserPromptForServerValidation>
                    <eapTls:ServerNames>$escapedServerNames</eapTls:ServerNames>
                    <eapTls:TrustedRootCA>$ServerCaThumbprintXml</eapTls:TrustedRootCA>
                  </eapTls:ServerValidation>
                  <eapTls:DifferentUsername>false</eapTls:DifferentUsername>
                  <eapTls:PerformServerValidation xmlns:eapTlsV2="http://www.microsoft.com/provisioning/EapTlsConnectionPropertiesV2">true</eapTls:PerformServerValidation>
                  <eapTls:AcceptServerName xmlns:eapTlsV2="http://www.microsoft.com/provisioning/EapTlsConnectionPropertiesV2">false</eapTls:AcceptServerName>
                </eapTls:EapType>
              </baseEap:Eap>
            </Config>
          </EapHostConfig>
        </EAPConfig>
      </OneX>
    </security>
  </MSM>
</WLANProfile>
"@

    # Correct the V2 namespace prefixes generated above.
    $profileXml = $profileXml.Replace('<eapTls:PerformServerValidation xmlns:eapTlsV2=', '<eapTlsV2:PerformServerValidation xmlns:eapTlsV2=')
    $profileXml = $profileXml.Replace('</eapTls:PerformServerValidation>', '</eapTlsV2:PerformServerValidation>')
    $profileXml = $profileXml.Replace('<eapTls:AcceptServerName xmlns:eapTlsV2=', '<eapTlsV2:AcceptServerName xmlns:eapTlsV2=')
    $profileXml = $profileXml.Replace('</eapTls:AcceptServerName>', '</eapTlsV2:AcceptServerName>')

    $tempPath = Join-Path $env:TEMP "$Ssid-EAPTLS.xml"
    try {
        Set-Content -LiteralPath $tempPath -Value $profileXml -Encoding UTF8 -Force
        $addOutput = (& netsh.exe wlan add profile filename="$tempPath" user=all 2>&1 | Out-String).Trim()
        if ($LASTEXITCODE -ne 0) { throw "Windows failed to import the '$Ssid' profile. $addOutput" }
        Write-Log "Profile installed: $Ssid."
    }
    finally { Remove-Item -LiteralPath $tempPath -Force -ErrorAction SilentlyContinue }

    $networks = (& netsh.exe wlan show networks mode=bssid 2>&1 | Out-String)
    if ($networks -notmatch ('(?im)^\s*SSID\s+\d+\s*:\s*' + [regex]::Escape($Ssid) + '\s*$')) {
        Write-Log "SSID not visible; profile will auto-connect later." 'WARN'
        exit 0
    }

    $connectOutput = (& netsh.exe wlan connect name="$Ssid" ssid="$Ssid" 2>&1 | Out-String).Trim()
    if ($LASTEXITCODE -ne 0) { throw "Windows could not start the connection to '$Ssid'. $connectOutput" }
    Write-Log "Connection requested: $Ssid."

    $deadline = (Get-Date).AddSeconds($ConnectionWaitSeconds)
    do {
        Start-Sleep -Seconds 2
        $status = (& netsh.exe wlan show interfaces 2>&1 | Out-String)
        if ($status -match '(?im)^\s*State\s*:\s*connected\s*$' -and $status -match ('(?im)^\s*SSID\s*:\s*' + [regex]::Escape($Ssid) + '\s*$')) {
            Write-Log "Connected: $Ssid."
            exit 0
        }
    } while ((Get-Date) -lt $deadline)

    $finalStatus = (& netsh.exe wlan show interfaces 2>&1 | Out-String).Trim()
    if (-not [string]::IsNullOrWhiteSpace($finalStatus)) {
        Write-Log 'Connection not completed; current WLAN status:' 'WARN'
        foreach ($line in ($finalStatus -split "`r?`n")) {
            if (-not [string]::IsNullOrWhiteSpace($line)) { Write-Log $line.Trim() 'WARN' }
        }
    }

    try {
        $recentWlanEvents = Get-WinEvent -FilterHashtable @{
            LogName   = 'Microsoft-Windows-WLAN-AutoConfig/Operational'
            StartTime = (Get-Date).AddMinutes(-5)
        } -ErrorAction Stop | Select-Object -First 8

        foreach ($event in $recentWlanEvents) {
            $message = ([string]$event.Message -replace "`r|`n", ' ' -replace '\s+', ' ').Trim()
            if ($message.Length -gt 500) { $message = $message.Substring(0,500) + '...' }
            Write-Log ("WLAN {0}: {1}" -f $event.Id,$message) 'WARN'
        }
    }
    catch {
        Write-Log "WLAN diagnostics unavailable: $($_.Exception.Message)" 'WARN'
    }

    if ($RequireImmediateConnection) {
        throw "The '$Ssid' connection did not reach the connected state within $ConnectionWaitSeconds seconds."
    }

    Write-Log "Profile installed; connection not completed within $ConnectionWaitSeconds seconds." 'WARN'
    exit 0
}
catch {
    Write-Log $_.Exception.Message 'ERROR'
    if ($_.InvocationInfo.ScriptLineNumber) { Write-Log "Line $($_.InvocationInfo.ScriptLineNumber)." 'ERROR' }
    exit 1
}

Then click Save.

Step 3: Configure Enrollment and Automation

In NinjaOne, go to:

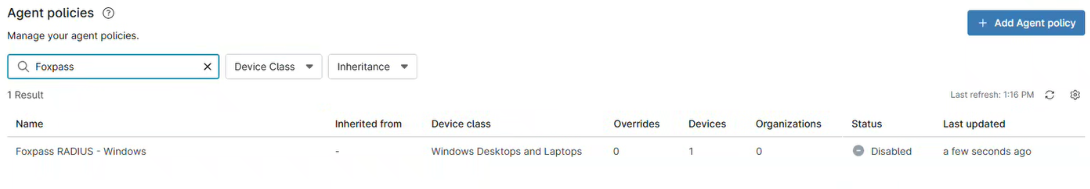

Administration > Policies > Agent Policies > Add Agent Policy

Configure the policy:

Setting	Value
Name	Foxpass RADIUS - Windows
Role	Windows Desktops and Laptops

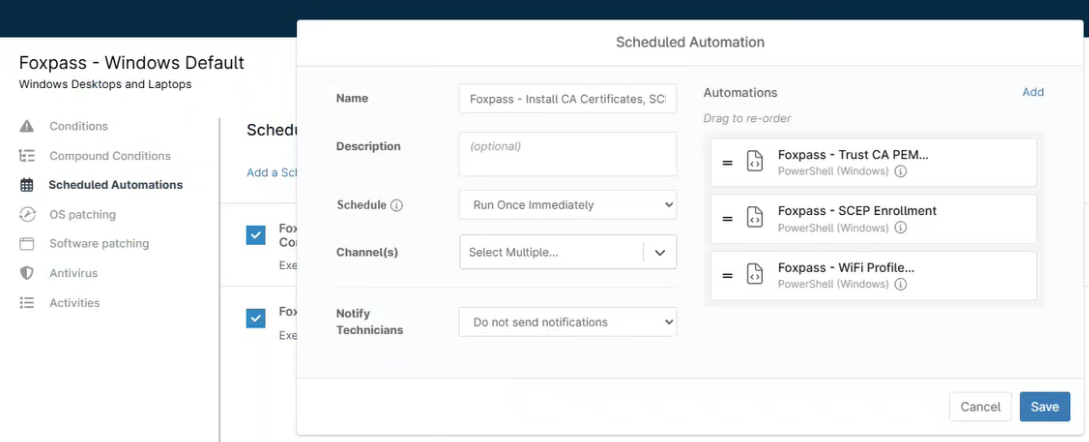

Scheduled Automation 1: Initial Deployment

Configure the schedule:

Setting	Value
Name	Foxpass - Install CA Certificates, SCEP Enrollment, WiFi Profile
Schedule	Run Once Immediately

Add these automations in order:

Foxpass - Trust CA PEM Certificates
Foxpass - SCEP Device Certificate Enrollment
Foxpass - Wi-Fi Profile Configuration - SSID

Click Save.

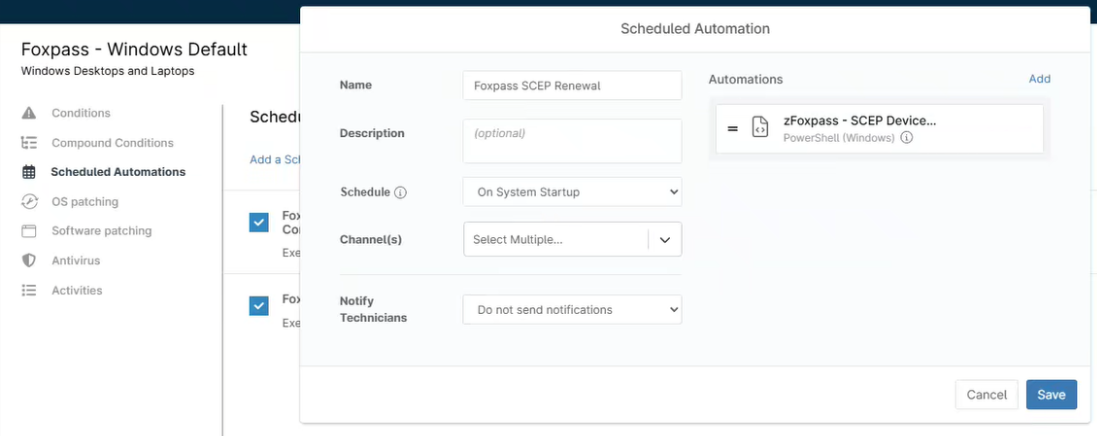

Scheduled Automation 2: SCEP Renewal

Configure the schedule:

Setting	Value
Name	Foxpass - SCEP Renewal
Schedule	On System Startup

Add this automation:

Foxpass - SCEP Device Enrollment

Click Save.

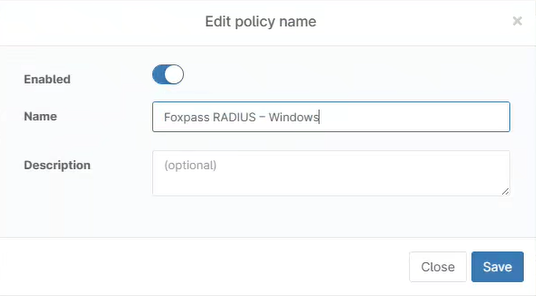

Enable the policy

Enable the newly created policy.

Step 4: Review and Validate

After deployment, verify that the automations and certificates are present.

Check automation activity

Go to:

Organization > Activities > All

Confirm that the automations completed successfully.

Check installed certificates

Open certlm (Manage Computer Certificates) and verify the following certificates.

Trusted Root Certification

Client CA
Server CA

Personal

SCEP Client Certificate
- The machine's {{SerialNumber}} should be present.

Prerequisites

Step 1: Configure SCEP

Create the SCEP endpoint in Foxpass

Create NinjaOne organization custom fields

Configure default organization custom field values

Step 2: Import and Configure Scripts

Script 1: Trust CA PEM Certificate

Script 2: SCEP Certificate Enrollment

Device/Machine Certificate

Script 3: Wi-Fi Profile Configuration

1. SSID

2. Server CA thumbprint

Step 3: Configure Enrollment and Automation

Scheduled Automation 1: Initial Deployment

Scheduled Automation 2: SCEP Renewal

Enable the policy

Step 4: Review and Validate

Check automation activity

Check installed certificates

Trusted Root Certification

Personal

Sign up now
